Columbia Open Health Data

About

Columbia Open Health Data (COHD) provides access to counts and patient prevalence (i.e., prevalence from electronic health records) of conditions, procedures, drug exposures, and patient demographics, and the co-occurrence frequencies between them. Count and frequency data were derived from the Columbia University Irving Medical Center's OHDSI database including inpatient and outpatient data. Counts are the number of patients with the concept, e.g., diagnosed with a condition, exposed to a drug, or who had a procedure. Frequencies are the number of patients with the concept divided by the total number of patients in the dataset. Clinical concepts (e.g., conditions, procedures, drugs) are coded by their standard concept ID in the OMOP Common Data Model. To protect patient privacy, all concepts and pairs of concepts where the count ≤ 10 were excluded, and counts were randomized by the Poisson distribution.

Three released data sets and one beta data set are available:

  1. 5-year non-hierarchical dataset: Includes clinical data from 2013-2017
  2. lifetime non-hierarchical dataset: Includes clinical data from all dates
  3. 5-year hierarchical dataset: Counts for each concept include patients from descendant concepts. Includes clinical data from 2013-2017.
  4. Temporal beta: Quantifies temporal relations between all concept pairs. Includes clinical data from all dates.

While the lifetime dataset captures a larger patient population and range of concepts, the 5-year dataset has better underlying data consistency. Please read our open publication in Scientific Data for an in depth description of our methods, results, and a discussion of the nuances of interpreting these data.

In the 5-year hierarchical data set, the counts for each concept include the patients from all descendant concepts. For example, the count for ibuprofen (ID 1177480) includes patients with Ibuprofen 600 MG Oral Tablet (ID 19019073 patients), Ibuprofen 400 MG Oral Tablet (ID 19019072), Ibuprofen 20 MG/ML Oral Suspension (ID 19019050), etc.

COHD was developed at the Columbia University Department of Biomedical Informatics as a collaboration between the Weng Lab, Tatonetti Lab, and the NCATS Biomedical Data Translator program (Red Team). This work was supported in part by grants: NCATS OT3TR002027, NLM R01LM009886-08A1, and NIGMS R01GM107145.

Instructions

Retrieve data for a single concept

  1. Choose a data set to retrieve data from
  2. Choose Concept 1 by either:
    1. entering the OMOP concept ID (e.g., "313217" (without the quotation marks) for "Atrial fibrillation"
    2. searching for a concept by typing the name and selecting the concept ID from the drop down list
  3. Press the "Get single concept" button

Retrieve association data for pair(s) of concepts

  1. Choose a data set to retrieve data from
  2. Choose an association method
  3. Choose Concept 1 by either:
    1. entering the OMOP concept ID (e.g., "313217" (without the quotation marks) for "Atrial fibrillation"
    2. searching for a concept by typing the name and selecting the concept ID from the drop down list
  4. Choose Concept 2 by either:
    1. leaving the field blank to retrieve associations with all concepts
    2. entering an OMOP domain to retrieve associations with all concepts in the given domain (hint: press the "down" keyboard key when this field is blank to show the list of OMOP domains present in the selected data set)
    3. entering the OMOP concept ID (e.g., "313217" (without the quotation marks) for "Atrial fibrillation"
    4. searching for a concept by typing the name and selecting the concept ID from the drop down list
  5. Press the "Get concept pairs" button
  6. For results between multiple pairs, links to download the data as JSON or CSV are presented below the results table

Association Methods

Chi-square

Calculates the chi-square statistic and p-value between pairs of concepts. Results are returned in descending order of the chi-square statistic. Note that due to large sample sizes, the chi-square can become very large. An adjusted p-value is also calculated, using Bonferonni correction with the total number of pairs of concepts in the data set. The expected frequencies for the chi-square analysis are calculated based on the single concept frequencies, assuming independence between concepts. P-value is calculated with 1 DOF.

Observed-to-expected frequency ratio

Calculates the natural logarithm of the ratio between the observed count and expected count for the pair of concepts. Expected count is calculated from the single concept frequencies, assuming independence between the concepts. Results are returned in descending order of ln_ratio.

expected_count = Count1&2 * num_patients / (Count1 * Count2)

ln_ratio = ln(observed_count / expected_count)

Relative frequency

Calculates the relative frequency (i.e., conditional probability) between pairs of concepts. Results are returned in descending order of relative frequency. Note that due to the randomization of the counts, the calculated relative frequencies can exceed the limit of 1.0.

relative_frequency = Count1&2 / Count2

Examples

Example 1: Atrial fibrillation

COHD can be used to retrieve the patient prevalence of individual concepts. In this example, information for the condition "Atrial fibrillation" (OMOP concept ID 313217) is retrieved from the 5-year non-hierarchical data set. The results show the concept definition (concept ID, concept name, concept domain, concept class, source vocabulary for the OMOP concept, and concept code in the source vocabulary) and the occurrence data (patient count and patient prevalence).

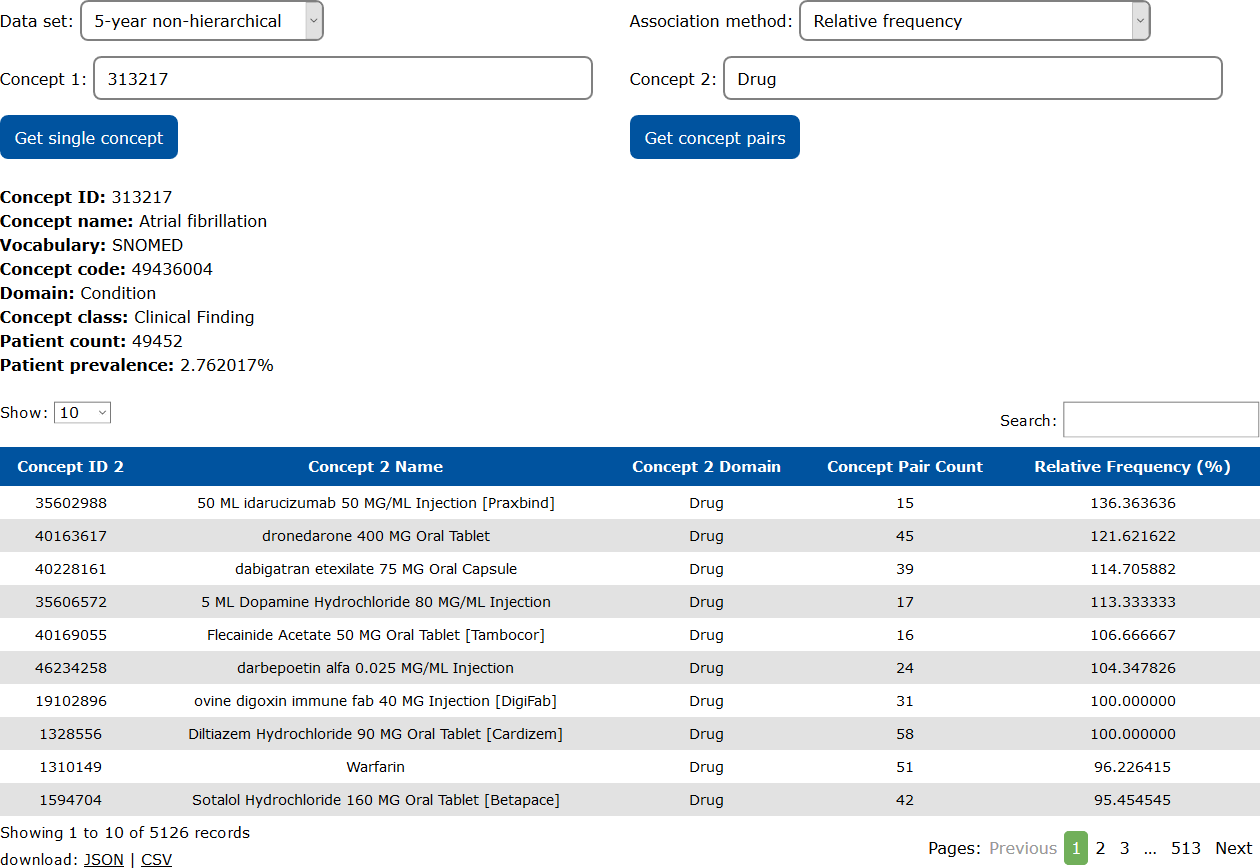

Example 2: Drugs associated with atrial fibrillation

COHD can be used to retrieve association data calculated from the co-occurrences of pairs of concepts. In this example, the relative frequency of drugs associated with the condition "Atrial fibrillation" (OMOP concept ID 313217) is retrieved from the 5-year non-hierarchical data set. The relative frequency informs investigators that among patients who have taken the drug identified in each row, this proportion of patients experienced atrial fibrillation at some time within the 5-year inclusion period of the data set. Note that the relative frequency can exceed the upper limit of 100% due to the Poisson randomization.

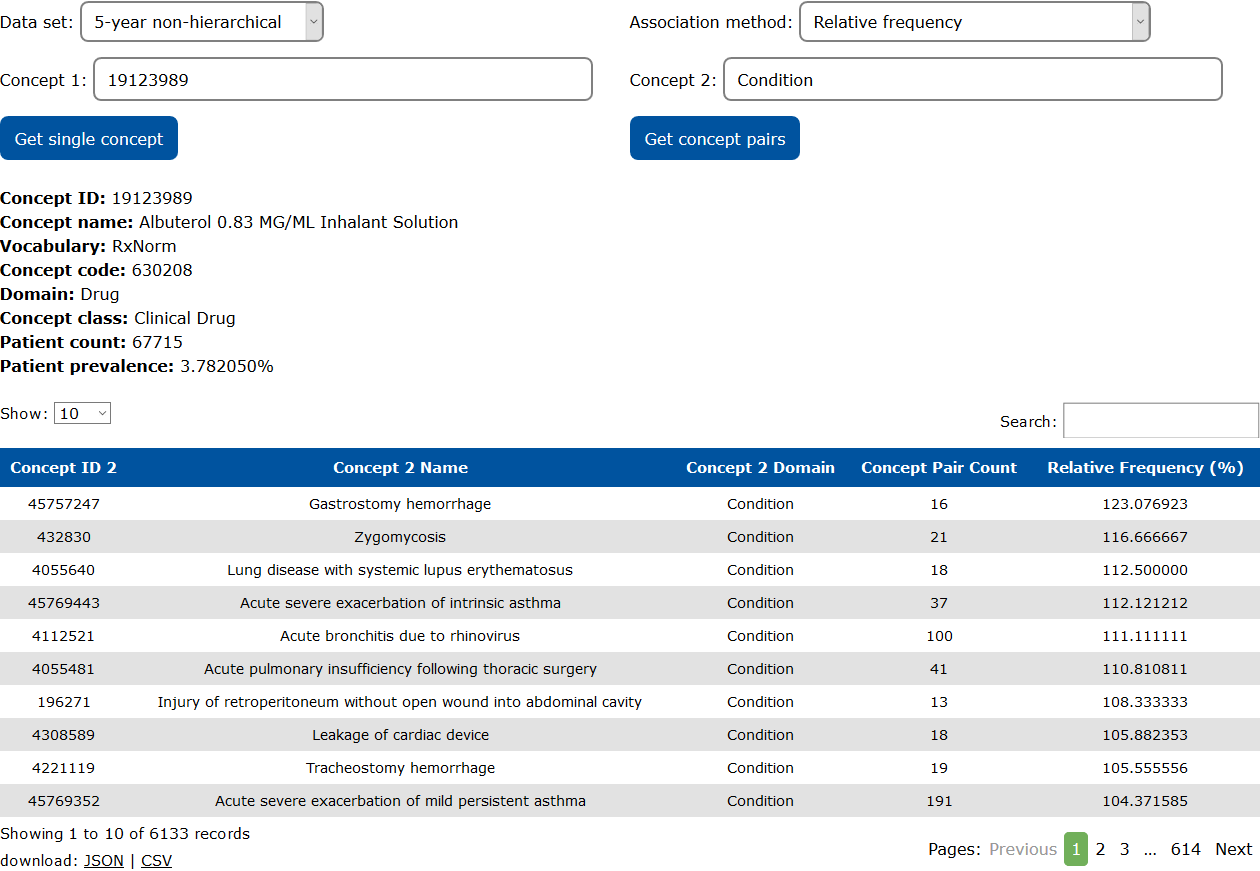

Example 3: Conditions associated with albuterol

Similar to Example 2, in this example, the relative frequency of conditions associated with the drug "Albuterol 0.83 MG/ML Inhalant Solution" (OMOP concept ID 19123989) is retrieved from the 5-year non-hierarchical data set. The relative frequency informs investigators that among patients who have had the condition identified in each row, this proportion of patients have taken "Albuterol 0.83 MG/ML Inhalant Solution" at some time within the 5-year inclusion period of the data set. Note that the relative frequency can exceed the upper limit of 100% due to the Poisson randomization.

API

The COHD RESTful SmartAPI provides a more powerful method to interact with the COHD data. The web user interface provides access to a few of the most frequently used endpoints in the COHD API. The COHD API additionally provides access to metadata, methods to explore the OMOP concept hierarchy, and cross-referencing between OMOP and external ontologies.

Data Set Files

The fully released data sets can be directly downloaded from FigSHARE.
